Westland "Westminster"

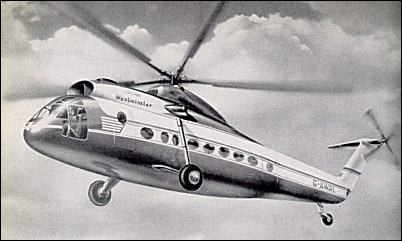

Large transport helicopter for up to 40 passengers with single main 5-blade rotor and gearbox from Sikorsky S-56, tailwheel u/c, tubular frame fuselage structure with metal cladding for passenger role or open frame for utility/crane role. Powered by two 2920shp Napier Eland E220 turboshafts. Two built. Prot. G-APLE FF 15 June 1958.

R.Simpson "Airlife's Helicopter and Rotorcraft", 1998


Based on the dynamics of the Sikorsky S-56 Mojave, Westland redesigned the fuselage using steel tube construction to create a medium sized troop and passenger carrying helicopter. First flown in June 1958, two prototypes were built before the project was cancelled. The Westminster was powered by twin Napier Eland turbines developing 2610kW with a single engine performance and could carry up to fifty-one troops or four Jeeps. The Westminster could cruise at 184kph, had a range of 330km and a gross weight of 16345kg. The project was cancelled in 1959.

P.Allen "The Helicopter", 1996

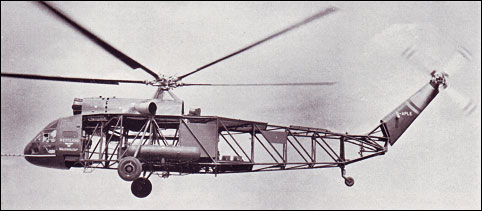

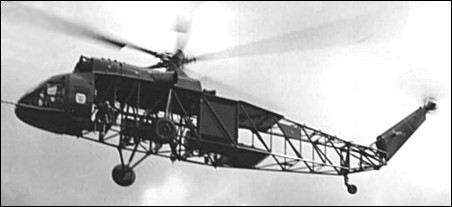

A private venture by Westland using the main transmission, rotors and hydraulic controls of the Sikorsky S-56 with a steel tube fuselage. The prototype flew on 15 June 1958. It was proposed for civil or military operation but the project came to nothing.

G.Apostolo "The Illustrated Encyclopedia of Helicopters", 1984

Technical data for "Westminster"

Crew: 2, passengers: 45, engine: 2 x Napier Eland E.229A turboshaft, rated at 2090kW, rotor diameter: 21.95m, length: 27.4m, take-off weight: 14965kg, empty weight: 10125kg, max speed: 241km/h, cruising speed: 184km/h, hovering ceiling, IGE: 2750m, range: 330km

The Crane Transporter Westminster. A model of the developed version of the Westminster showing the slimmer fuselage and a load being transported in a capsule slung underneath.
